ATV610D45N4 Schneider Electric

In Stock

HURRY UP! Only 10 Products Left

$318635.00

$143385

55% OFF

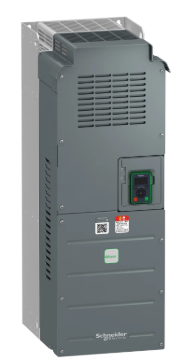

This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous motors. It works at a rated supply voltage from 380V to 415V AC. It is suitable for motors with power rating up to 45kW / 60hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 37kW / 50hp for applications requiring significant overload (up to 150%). It offers a plug & play solution
whereby parameters are preset in the factory to the desired configuration
to help save process control and operating time. It has integrated radio interference input filters in accordance with the EMC standard for variable speed electrical power drive “products” IEC/EN 61800-3
edition 2
category C3 in environment 1 or 2. It weighs 26.8kg and its dimensions are
226mm wide
613mm high
271mm deep. this drive has been specially designed for standard applications in the market segments water and wastewater and oil and gas and in the domains process and machine management and building management.

This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous motors. It works at a rated supply voltage from 380V to 415V AC. It is suitable for motors with power rating up to 45kW / 60hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 37kW / 50hp for applications requiring significant overload (up to 150%). It offers a plug & play solution

whereby parameters are preset in the factory to the desired configuration

to help save process control and operating time. It has integrated radio interference input filters in accordance with the EMC standard for variable speed electrical power drive “products” IEC/EN 61800-3

edition 2

category C3 in environment 1 or 2. It weighs 26.8kg and its dimensions are

226mm wide

613mm high

271mm deep. this drive has been specially designed for standard applications in the market segments water and wastewater and oil and gas and in the domains process and machine management and building management.
