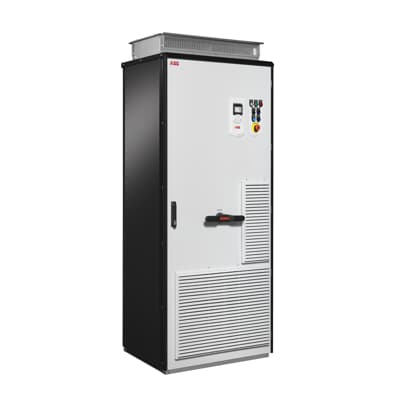

ABB ACS880-04-650A-3+E200+E208+J413+K458+L503

In Stock

HURRY UP! Only 5 Products Left

$7856412.00

$4321026

45% OFF

7 Days Return

Free Delivery

1 Year Warranty

Pay on Delivery

Top Brands

Fast Delivery

Description Specification Reviews

0%

Write Review

Title*

Review*

NO REVIEWS YET!

Parameter Details Model ACS880-04-650A-3+E200+E208+J413+K458+L503 Drive Type Cabinet-built drive module Series ACS880 Rated Supply Voltage 3-phase
380–415 V AC (±10%) Rated Output Current 650 A Power Range Approx. 355–400 kW (depends on load type and voltage) Frequency 50/60 Hz Enclosure Type IP00 (without enclosure; to be mounted in a cabinet) Control Type Direct Torque Control (DTC) Mounting Module version for cabinet integration ?? Included Optional Modules	Code Option Description +E200 Fieldbus Module – PROFINET Adds PROFINET communication capabilities +E208 Dual-port Ethernet Adapter Used for Ethernet-based protocols and communication redundancy +J413 I/O Extension Module Provides additional digital and analog I/O channels +K458 Safe Torque Off (STO) Module Integrated functional safety according to SIL3 / PL e +L503 AC Choke/Filter Reduces harmonics and improves power quality ? Applications

Parameter Details Model ACS880-04-650A-3+E200+E208+J413+K458+L503 Drive Type Cabinet-built drive module Series ACS880 Rated Supply Voltage 3-phase

380–415 V AC (±10%) Rated Output Current 650 A Power Range Approx. 355–400 kW (depends on load type and voltage) Frequency 50/60 Hz Enclosure Type IP00 (without enclosure; to be mounted in a cabinet) Control Type Direct Torque Control (DTC) Mounting Module version for cabinet integration ?? Included Optional Modules

Code Option Description +E200 Fieldbus Module – PROFINET Adds PROFINET communication capabilities +E208 Dual-port Ethernet Adapter Used for Ethernet-based protocols and communication redundancy +J413 I/O Extension Module Provides additional digital and analog I/O channels +K458 Safe Torque Off (STO) Module Integrated functional safety according to SIL3 / PL e +L503 AC Choke/Filter Reduces harmonics and improves power quality ? Applications

The ABB ACS880-04-650A-3 is a part of the ACS880 series of industrial single drive modules. These are highly flexible and compact wall-mounted or cabinet-built AC drives, designed for demanding industrial applications requiring high performance and adaptability. This particular model supports 650 A output current and three-phase 400 V class (380–415 V) supply, and includes several built-in optional modules that enhance communication, safety, input/output, and filtering capabilities.
