ATV630D30N4 Schneider Electric

In Stock

HURRY UP! Only 10 Products Left

$366961.00

$143114

61% OFF

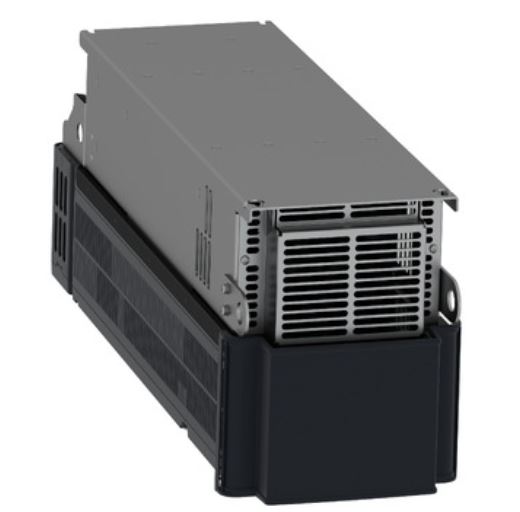

This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard
1 Ethernet port
2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 30kW / 40hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 22kW / 30hp for applications requiring significant overload (up to 150%). It weighs 28kg and its dimensions are
226mm wide
673mm high
271mm deep. This drive is focused on fluids management processing and energy saving
it offers extensive flexibility in water and wastewater
mining
minerals and metals
oil and gas and food and beverage applications. Accessories (fan kit
graphic display terminal) and options (I/O expansion modules
communication modules
EMC input filters) are available with Altivar Process ATV600 drives
depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management
asset management and also the overall performance of the process.

This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard

1 Ethernet port

2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 30kW / 40hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 22kW / 30hp for applications requiring significant overload (up to 150%). It weighs 28kg and its dimensions are

226mm wide

673mm high

271mm deep. This drive is focused on fluids management processing and energy saving

it offers extensive flexibility in water and wastewater

mining

minerals and metals

oil and gas and food and beverage applications. Accessories (fan kit

graphic display terminal) and options (I/O expansion modules

communication modules

EMC input filters) are available with Altivar Process ATV600 drives

depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management

asset management and also the overall performance of the process.
