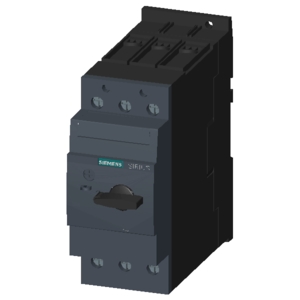

3RV2032-4PA10

In Stock

15 Products Left

$89250

$53550

40% OFF

Specification Details Frame Size S2 Current Rating 28...36 A Trip Class CLASS 10 Magnetic Trip Setting 520 A Rated Operational Voltage 690 V AC Frequency 50/60 Hz Number of Poles 3 Mounting Type DIN Rail Terminal Type Screw Terminal Protection Class (Enclosure) IP20 Operating Temperature Range -20°C to +60°C Storage Temperature Range -50°C to +80°C Shock Resistance 25g / 11 ms (IEC 60068-2-27) Vibration Resistance 5g (10–500 Hz) (IEC 60068-2-6) Mechanical Service Life 50
000 cycles Electrical Endurance 50
000 cycles Power Loss at AC (Hot State) 20 W (6.7 W per pole) Insulation Voltage (Rated) 690 V Surge Voltage Resistance 6 kV Dimensions (W x H x D) 55 mm x 140 mm x 149 mm Net Weight 1.133 kg Packaging Dimensions (W x H x D) 62 mm x 147 mm x 167 mm Packaging Quantity 1 Piece Commodity Code 85362010

Specification Details Frame Size S2 Current Rating 28...36 A Trip Class CLASS 10 Magnetic Trip Setting 520 A Rated Operational Voltage 690 V AC Frequency 50/60 Hz Number of Poles 3 Mounting Type DIN Rail Terminal Type Screw Terminal Protection Class (Enclosure) IP20 Operating Temperature Range -20°C to +60°C Storage Temperature Range -50°C to +80°C Shock Resistance 25g / 11 ms (IEC 60068-2-27) Vibration Resistance 5g (10–500 Hz) (IEC 60068-2-6) Mechanical Service Life 50

000 cycles Electrical Endurance 50

000 cycles Power Loss at AC (Hot State) 20 W (6.7 W per pole) Insulation Voltage (Rated) 690 V Surge Voltage Resistance 6 kV Dimensions (W x H x D) 55 mm x 140 mm x 149 mm Net Weight 1.133 kg Packaging Dimensions (W x H x D) 62 mm x 147 mm x 167 mm Packaging Quantity 1 Piece Commodity Code 85362010
