ATV610U30N4 Schneider Electric

In Stock

HURRY UP! Only 10 Products Left

$80165.00

$36074

55% OFF

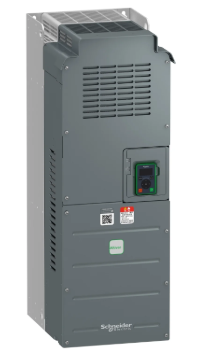

This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous motors. It works at a rated supply voltage from 380V to 415V AC. It is suitable for motors with power rating up to 3kW for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 2.2kW /3hp for applications requiring significant overload (up to 150%). It offers a plug & play solution
whereby parameters are preset in the factory to the desired configuration
to help save process control and operating time. It has integrated radio interference input filters in accordance with the EMC standard for variable speed electrical power drive “products” IEC/EN 61800-3
edition 2
category C3 in environment 1 or 2. It weighs 2.4kg and its dimensions are
145mm wide
297mm high
203mm deep. this drive has been specially designed for standard applications in the market segments water and wastewater and oil and gas and in the domains process and machine management and building management.

This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous motors. It works at a rated supply voltage from 380V to 415V AC. It is suitable for motors with power rating up to 3kW for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 2.2kW /3hp for applications requiring significant overload (up to 150%). It offers a plug & play solution

whereby parameters are preset in the factory to the desired configuration

to help save process control and operating time. It has integrated radio interference input filters in accordance with the EMC standard for variable speed electrical power drive “products” IEC/EN 61800-3

edition 2

category C3 in environment 1 or 2. It weighs 2.4kg and its dimensions are

145mm wide

297mm high

203mm deep. this drive has been specially designed for standard applications in the market segments water and wastewater and oil and gas and in the domains process and machine management and building management.
